Great Orme Tramway

Upper Railway NGR SH766833

Lower Railway NGR SH778827

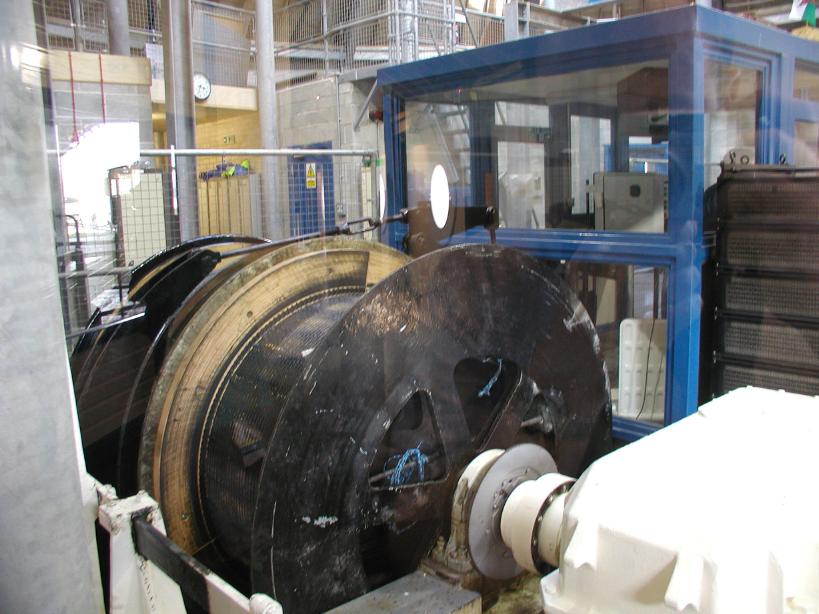

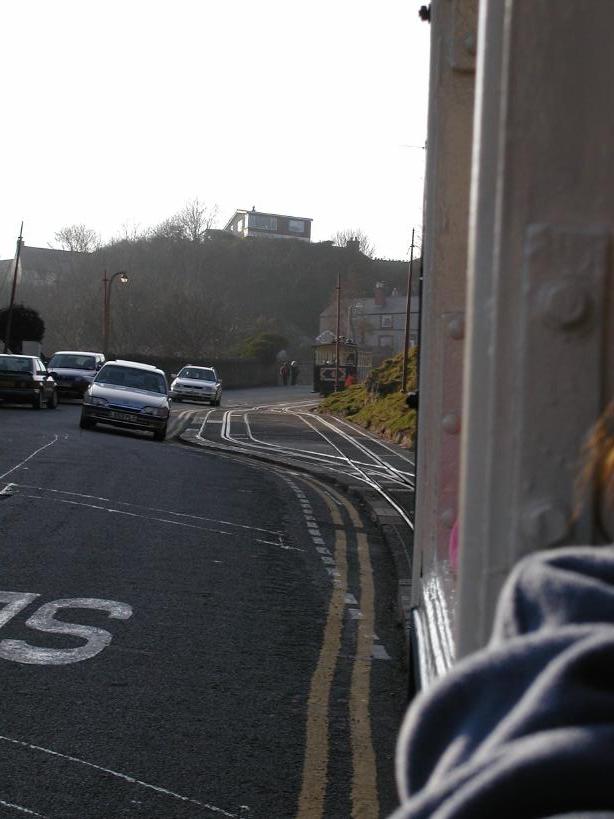

The lower track was started in 1901 and finished in 1902, but completion of the Upper line was slower until the Lower section was making money, it was opened a year later. It is a funicular operated as two funiculars, the upper and lower sections. They operate with a fixed winding engine and two counter balanced cars. They run through public roads and have request stops so must be able to stop, the driver of the car has no control but signals to the winchman when to stop. The line runs every 20 mins daily from 10am - 5pm, Mid April to End of September.

www.greatormetramway.com/

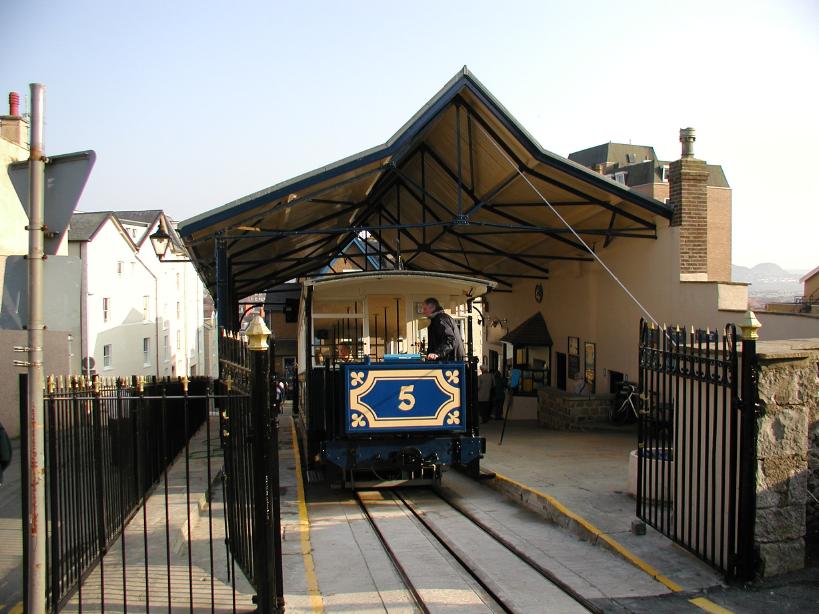

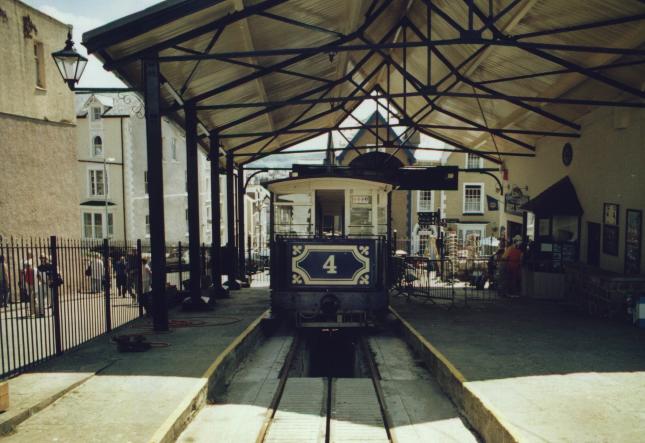

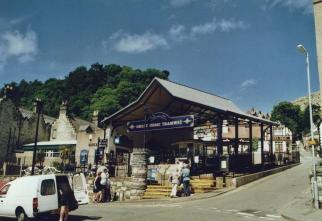

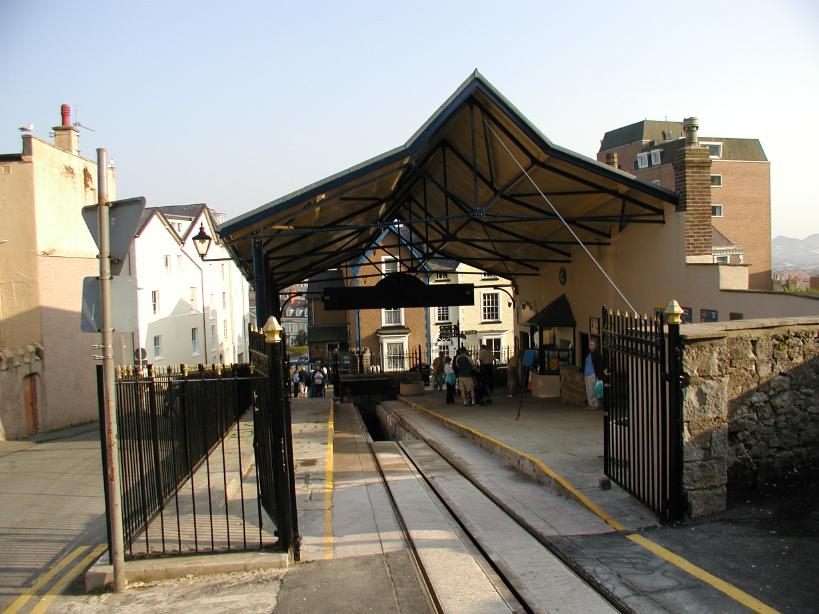

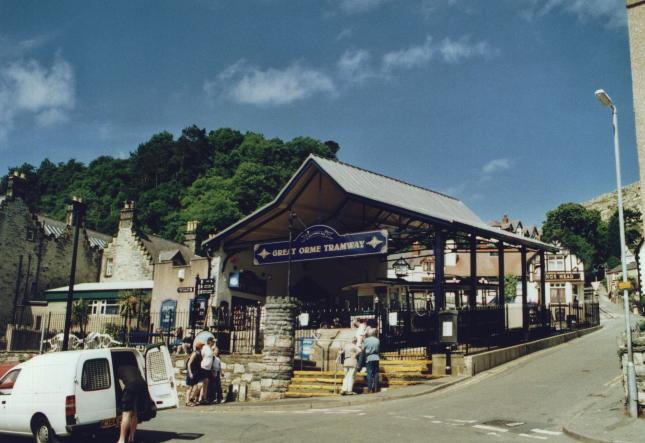

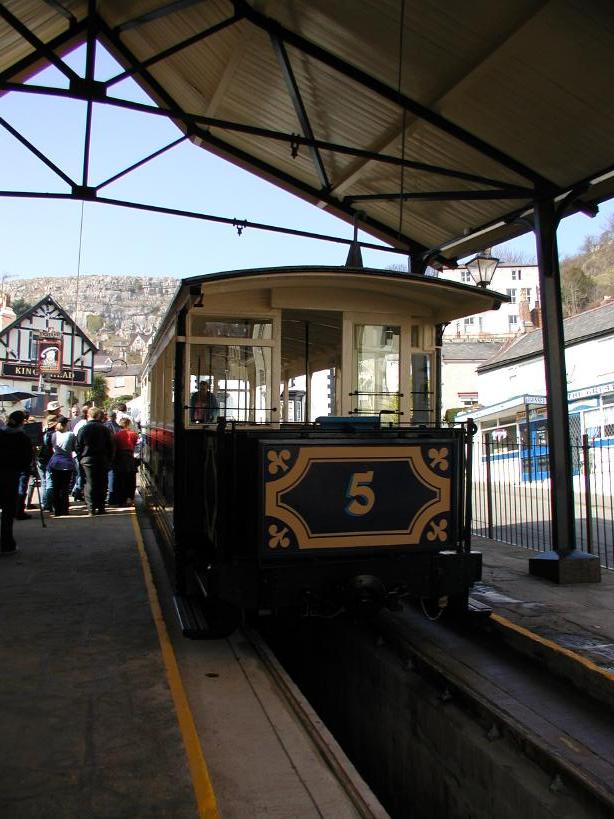

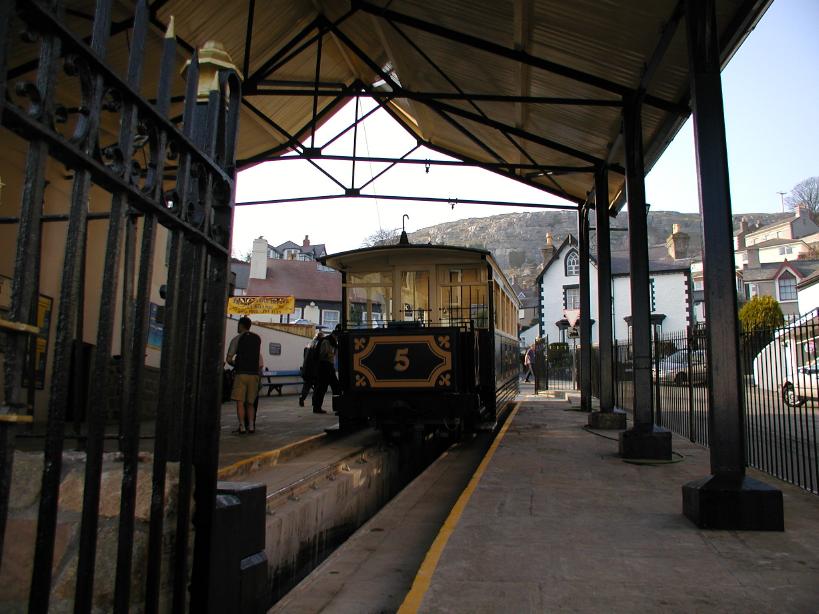

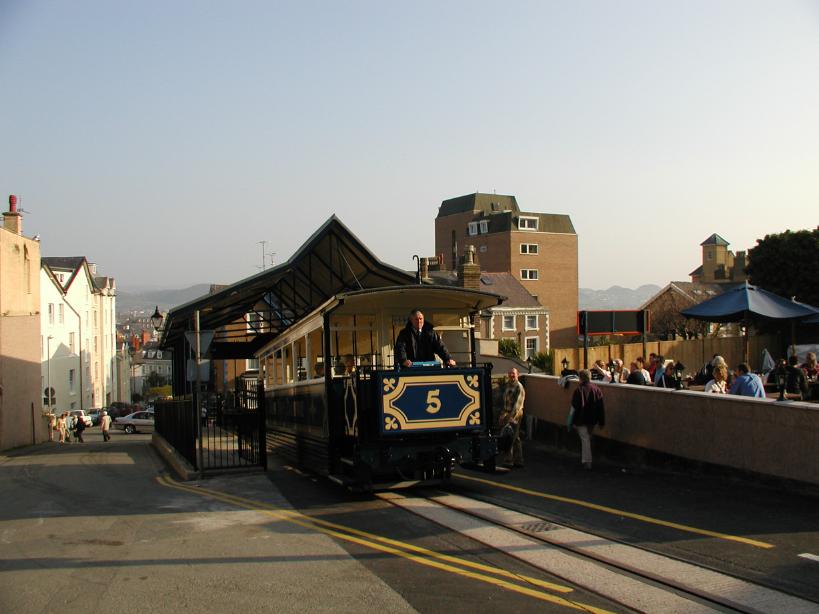

Lower Station Lower Station

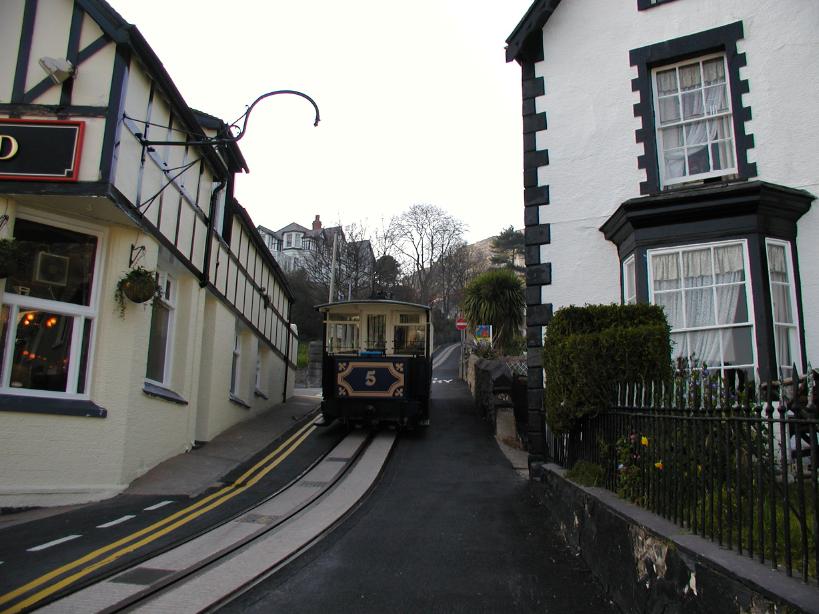

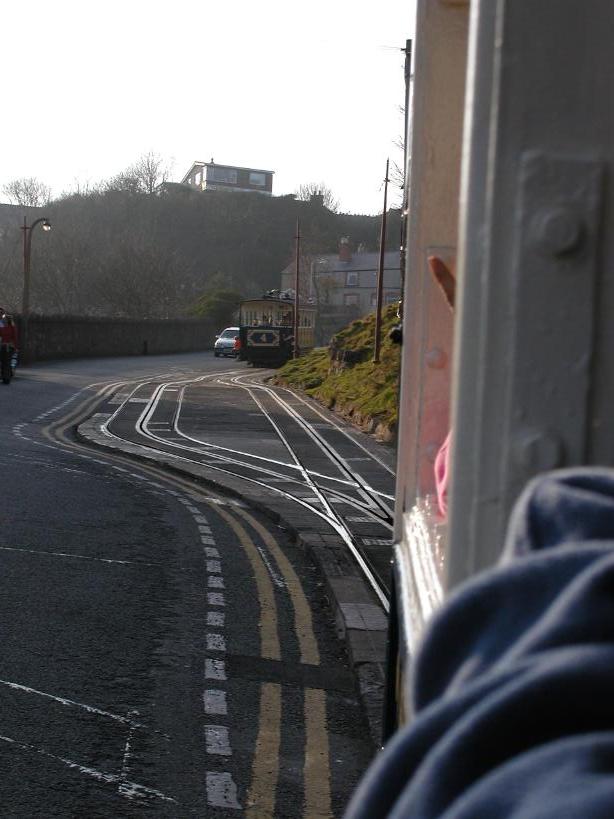

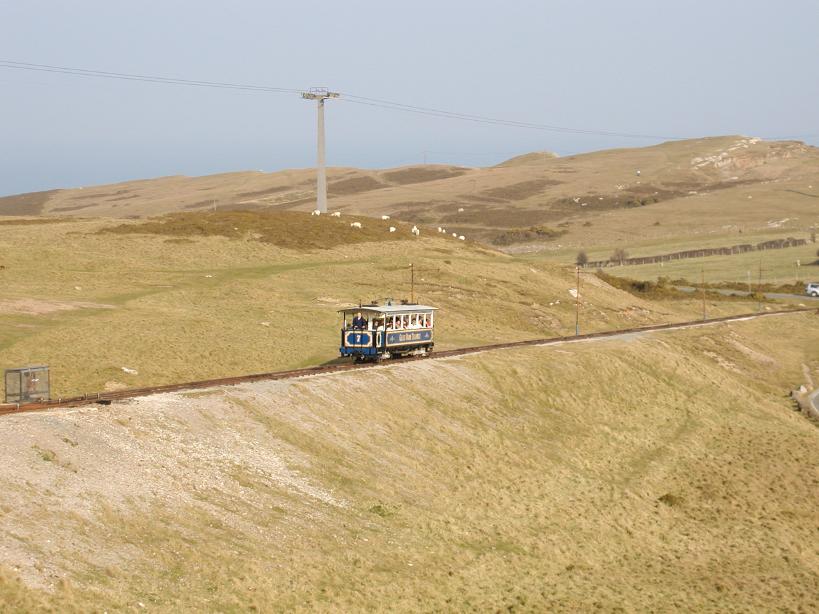

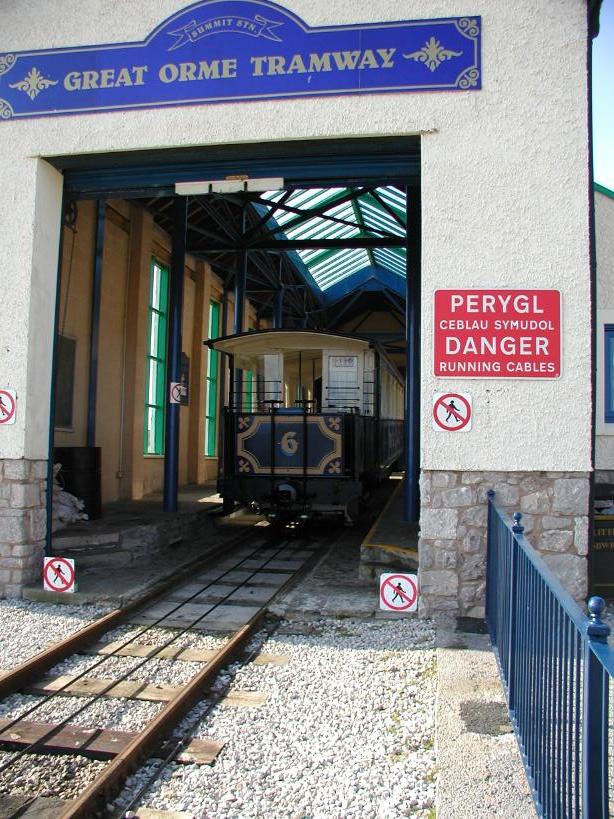

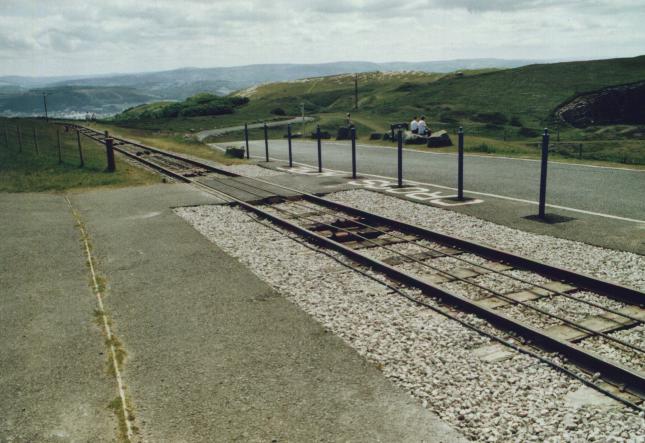

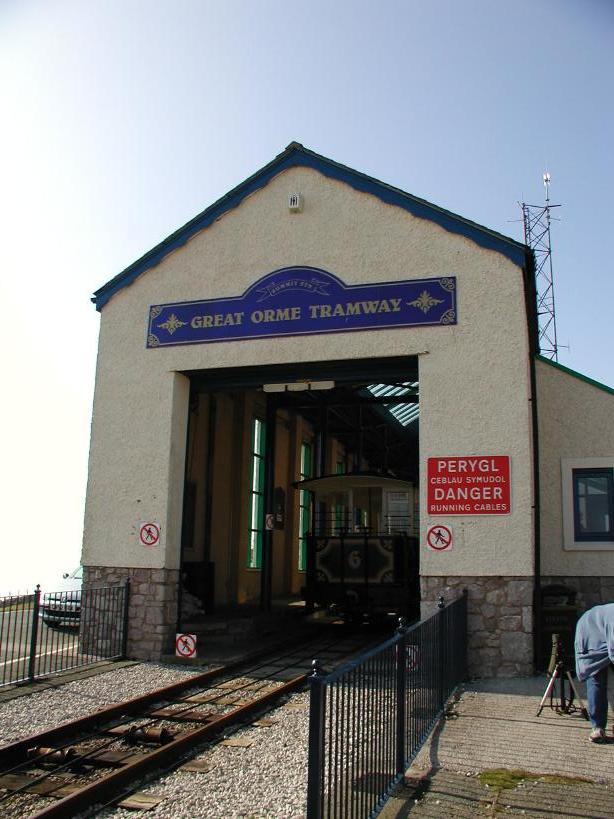

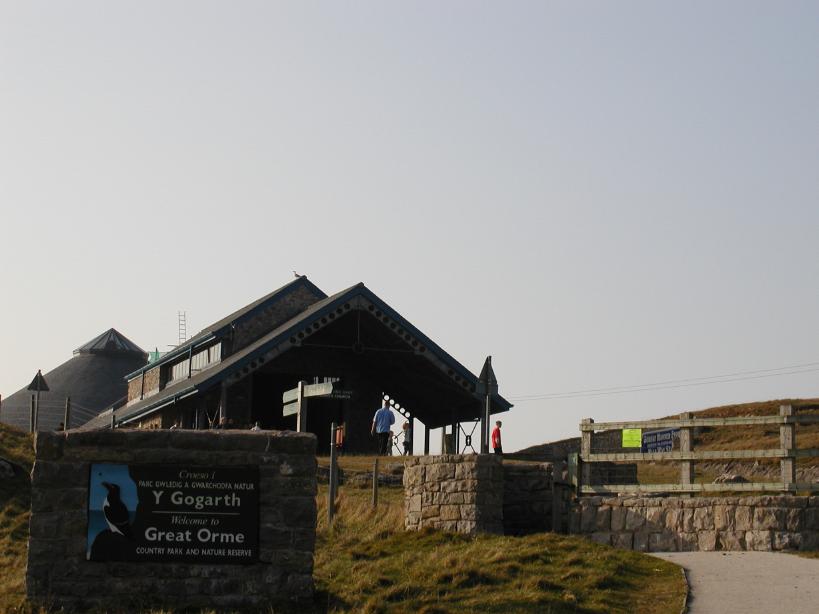

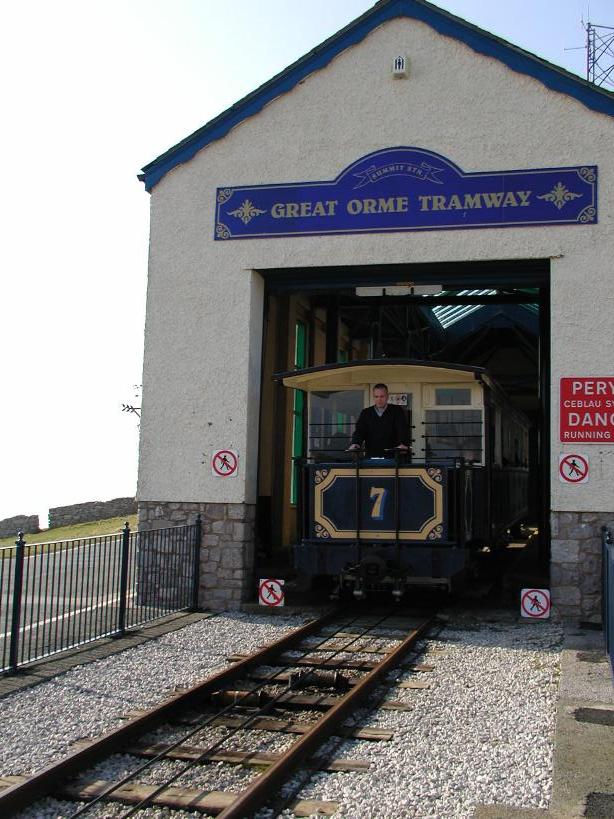

Top Station The Line The Line

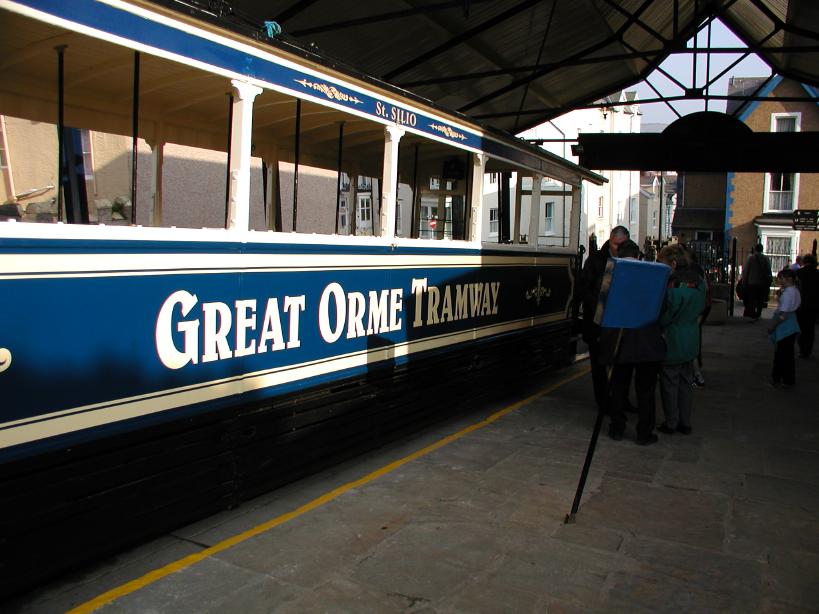

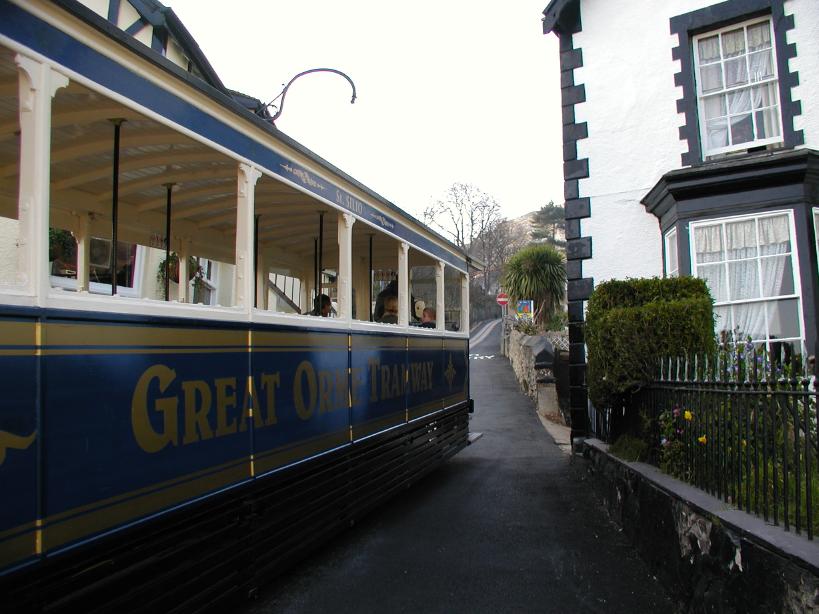

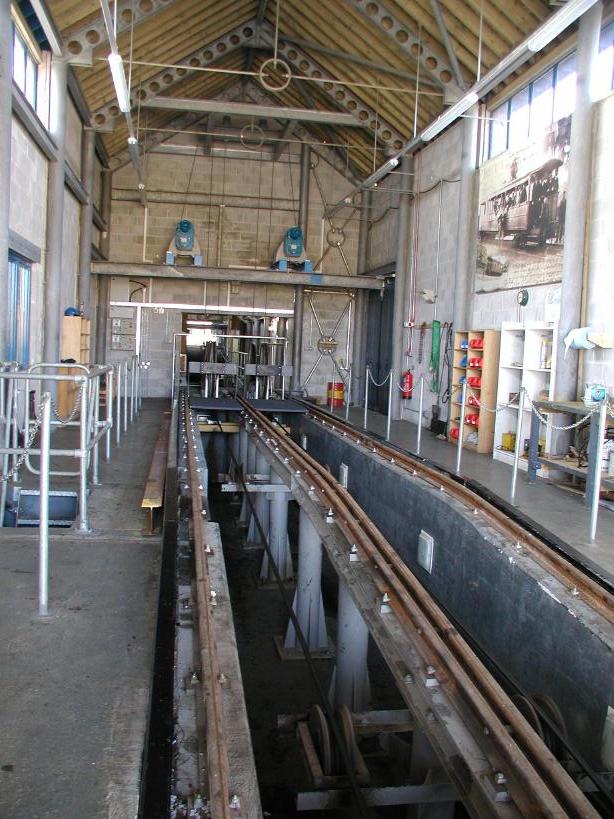

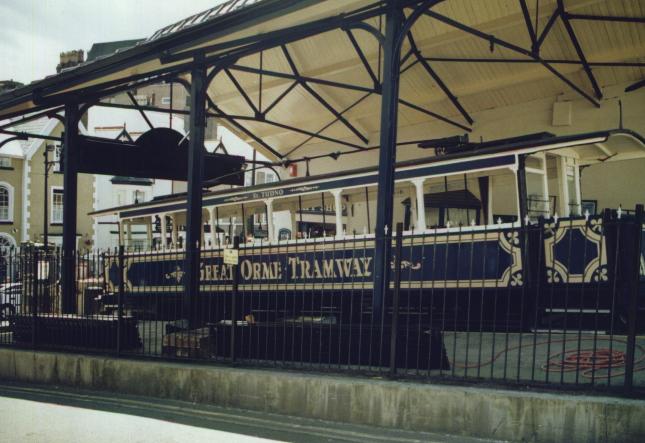

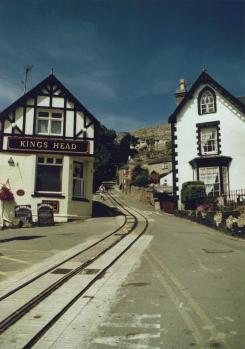

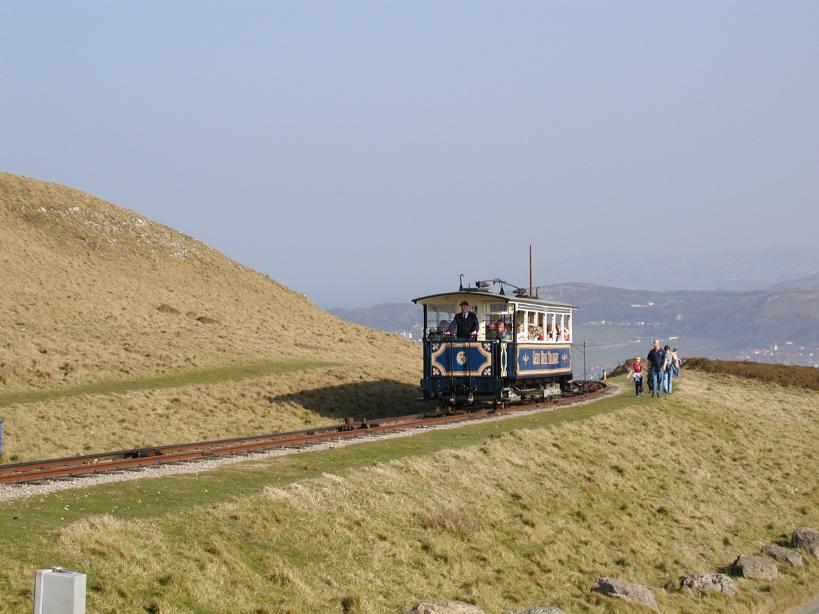

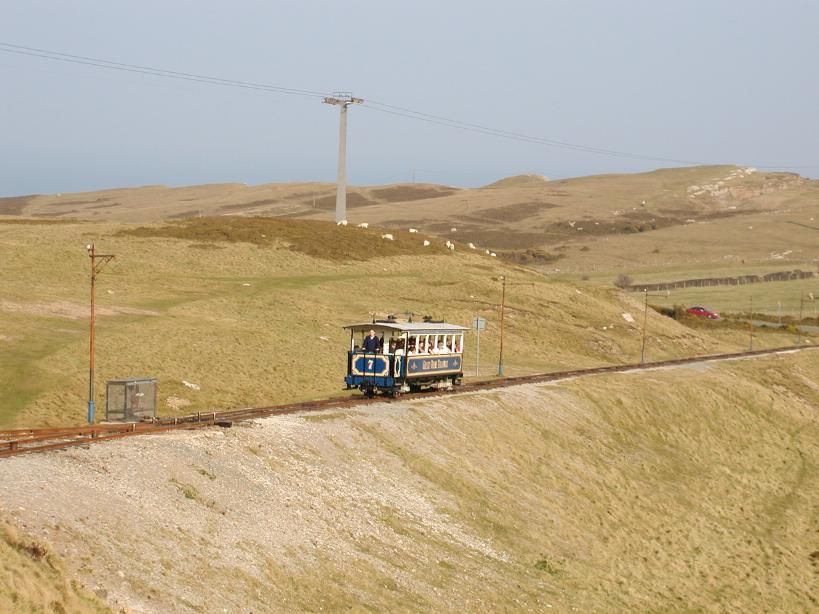

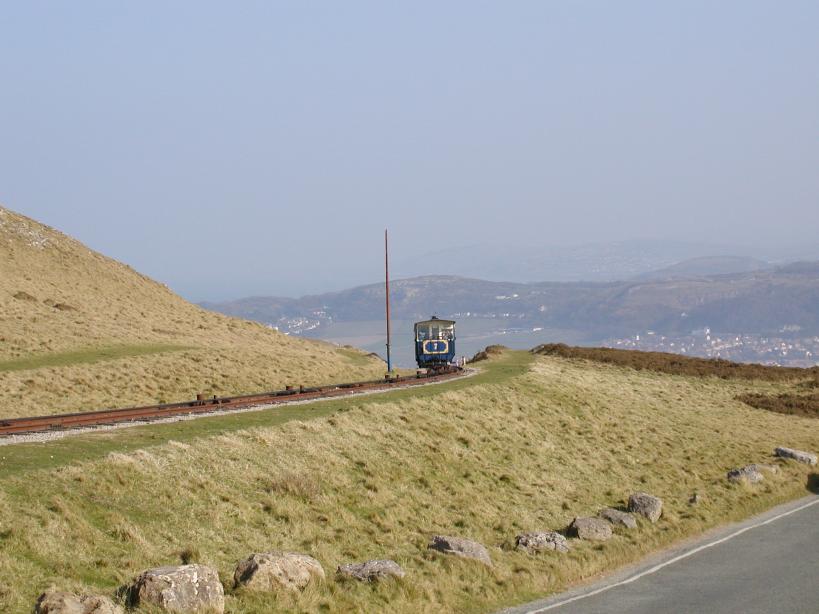

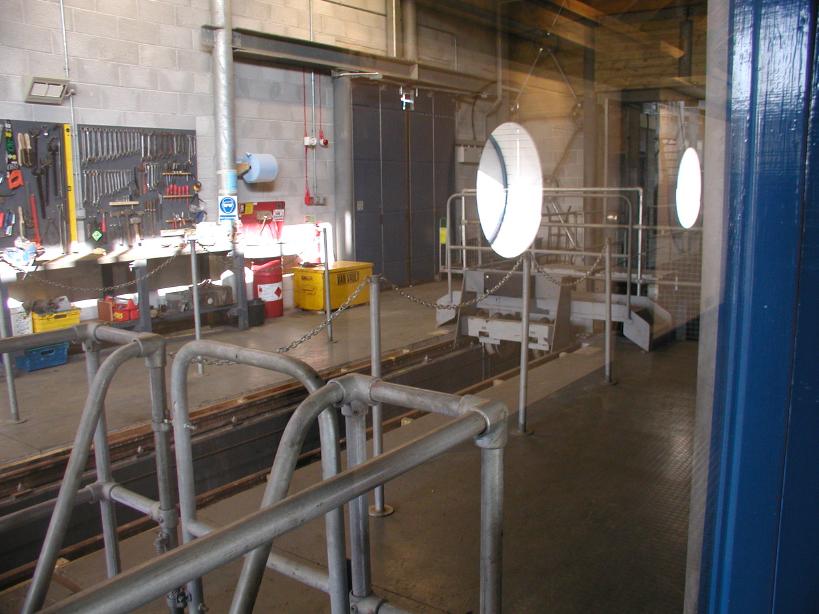

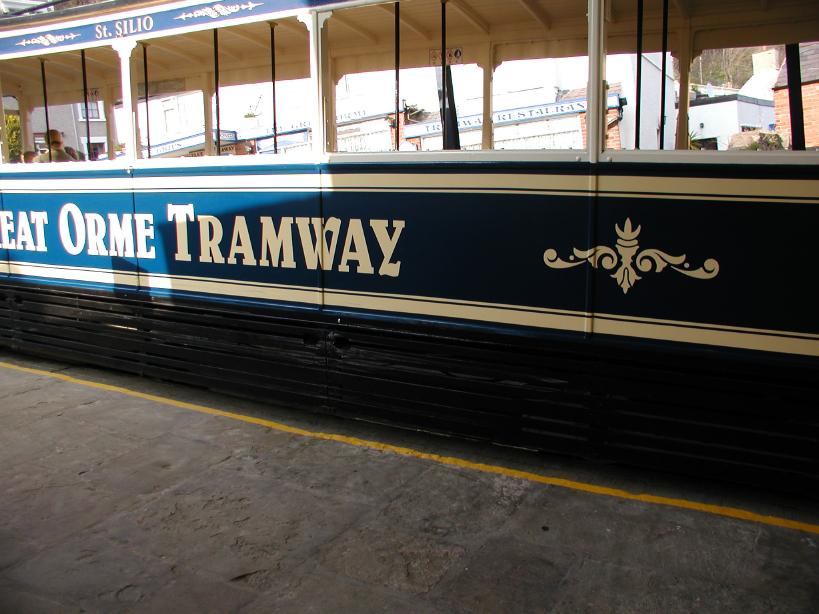

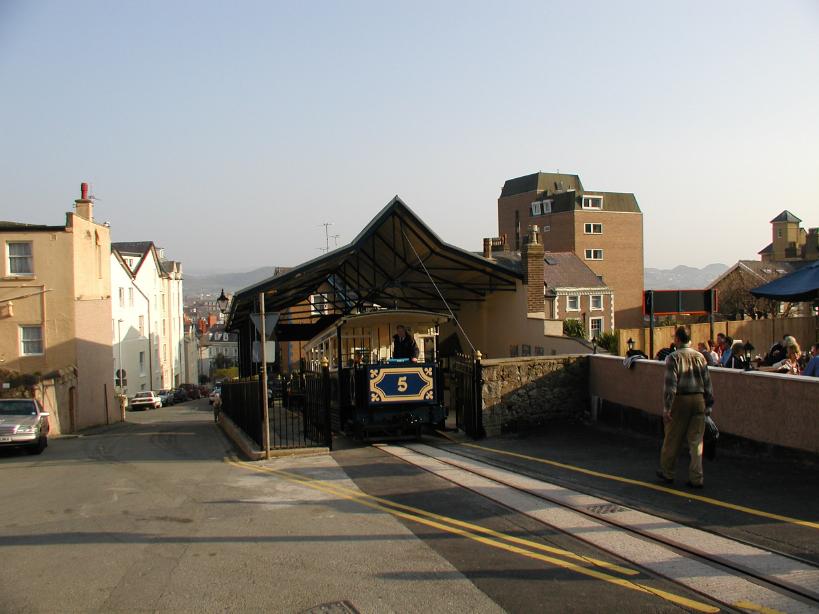

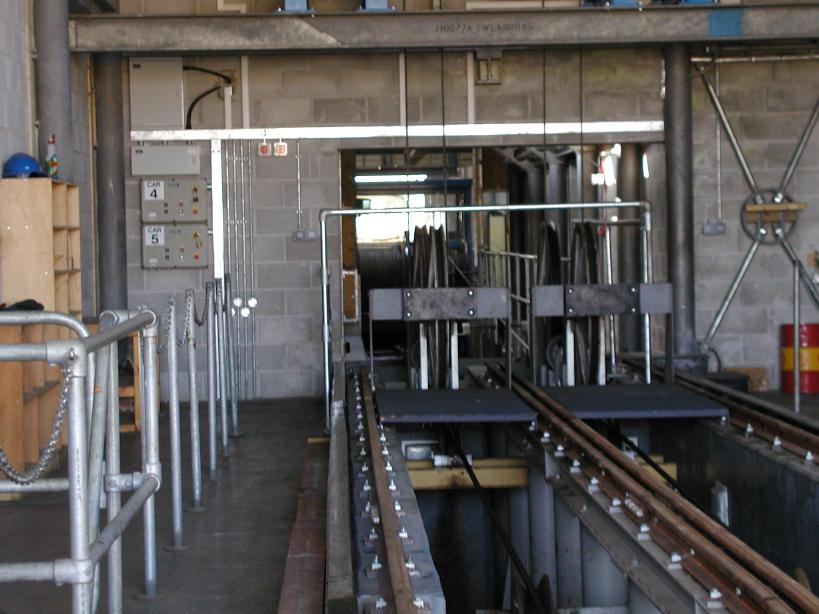

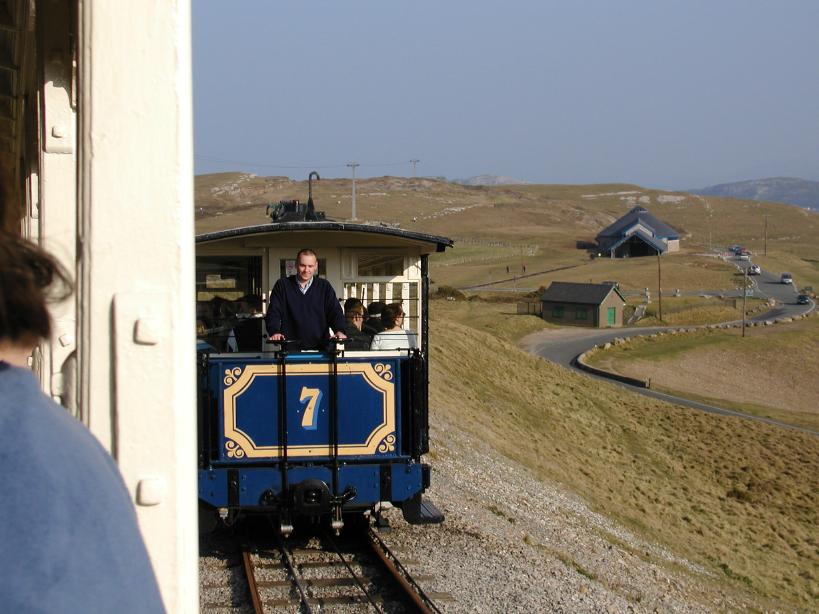

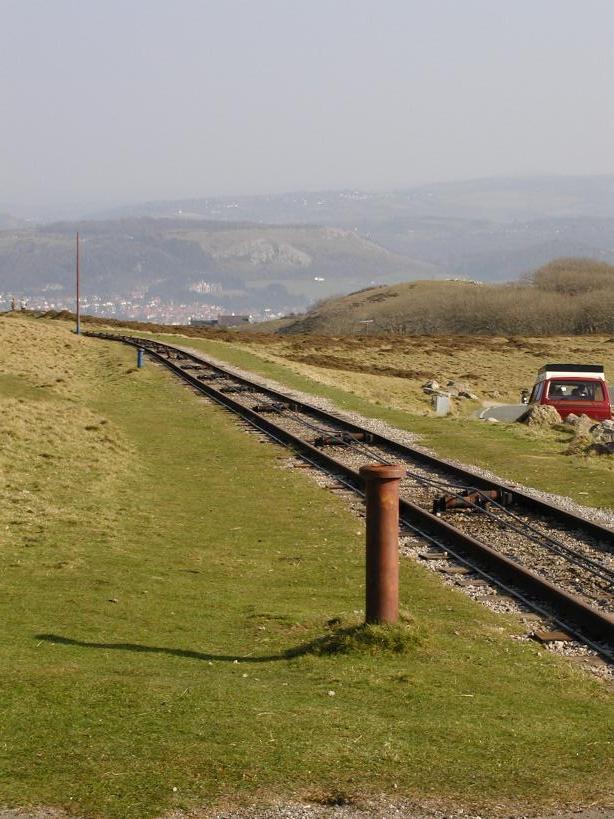

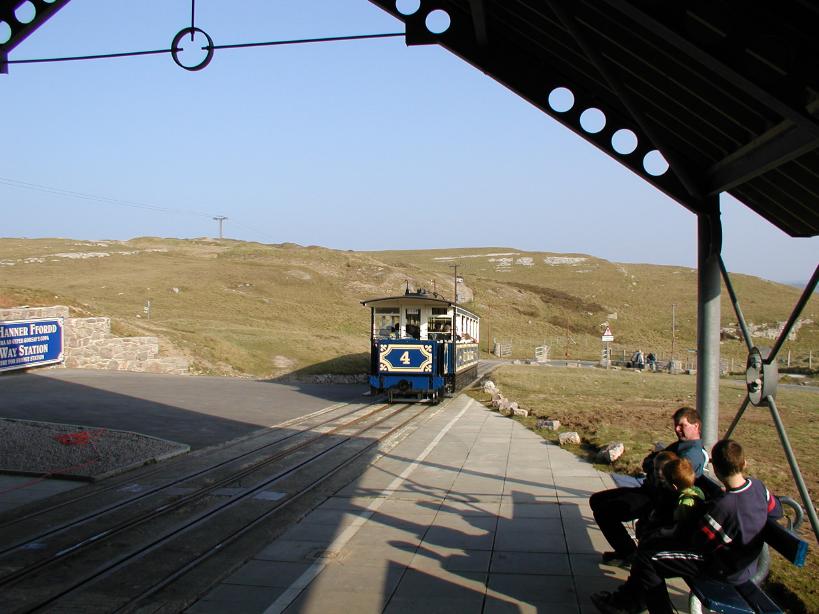

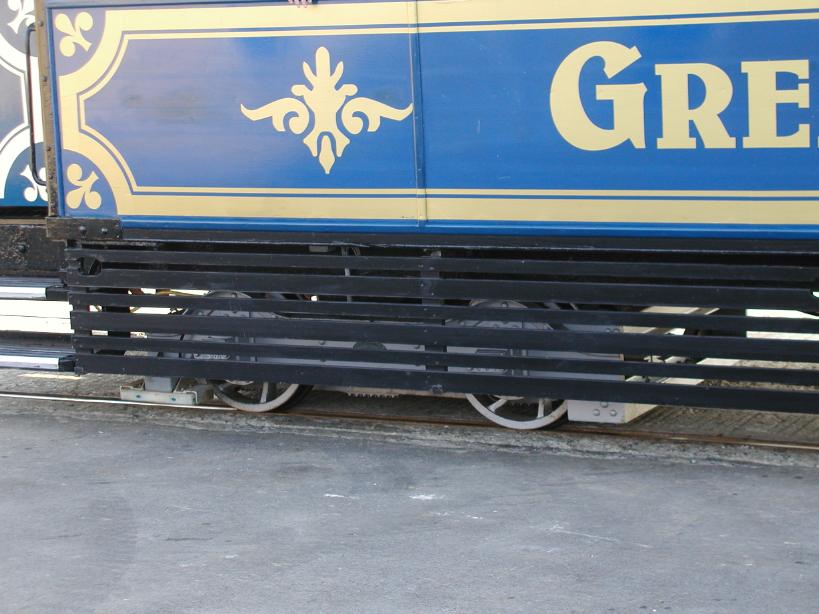

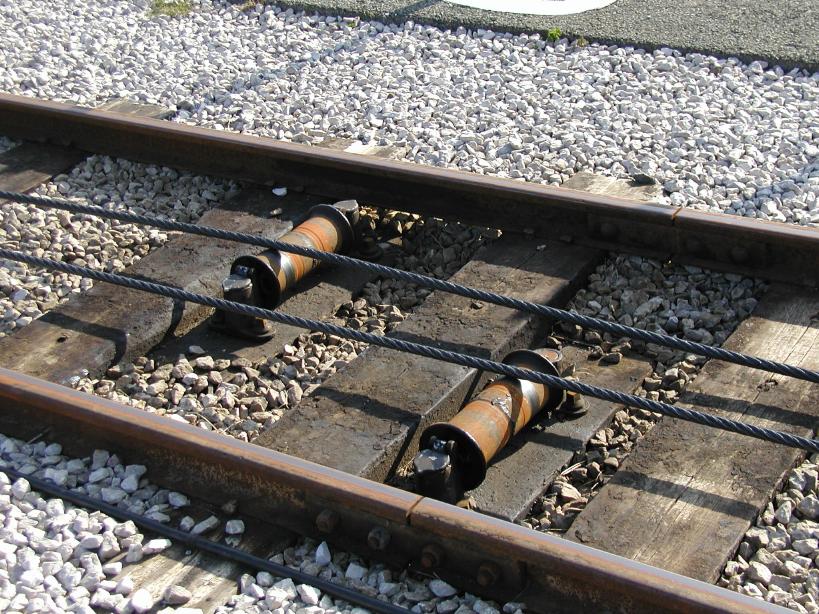

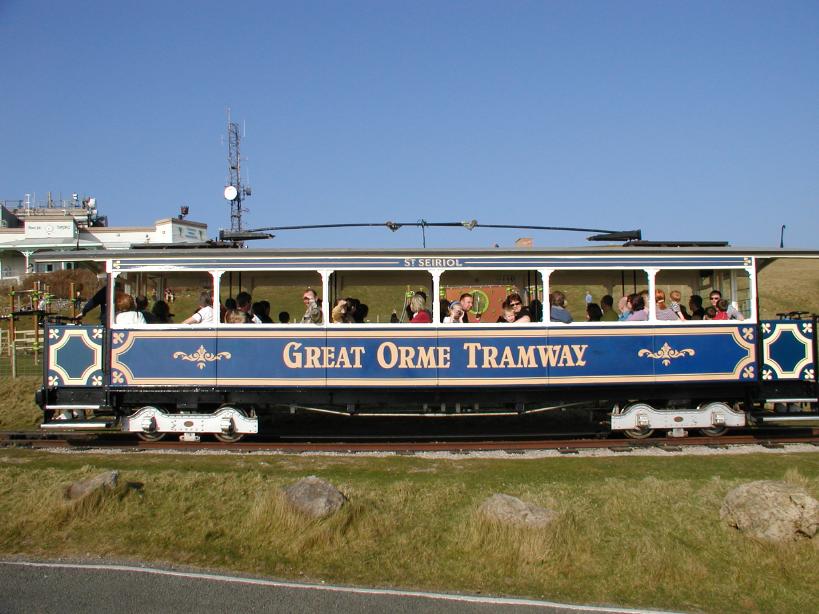

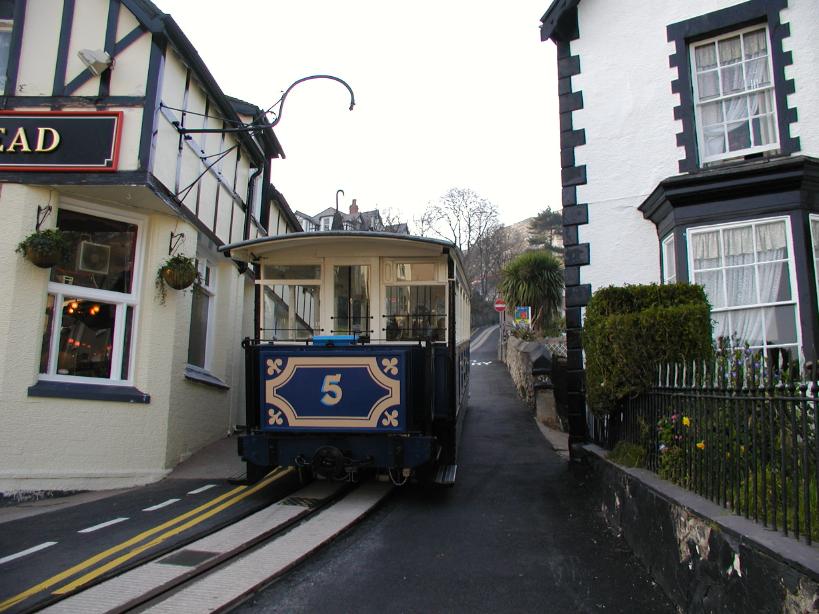

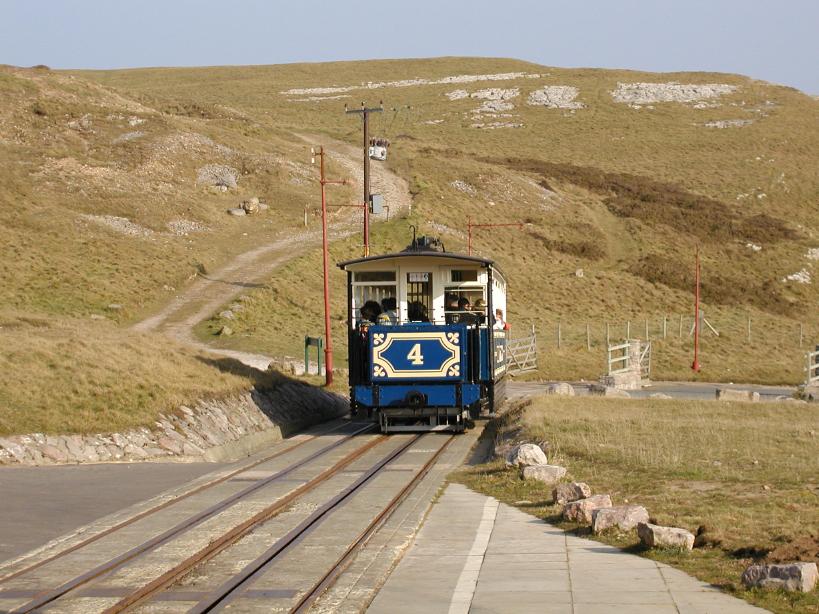

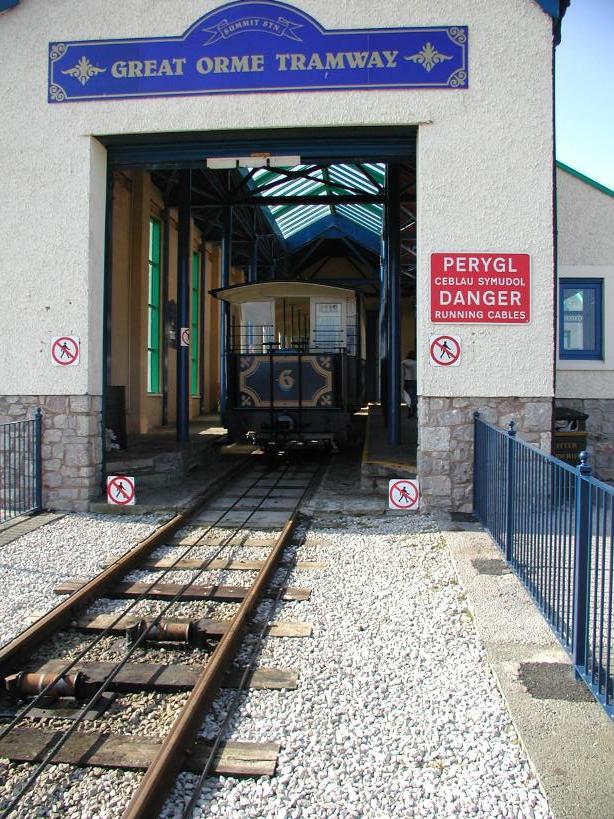

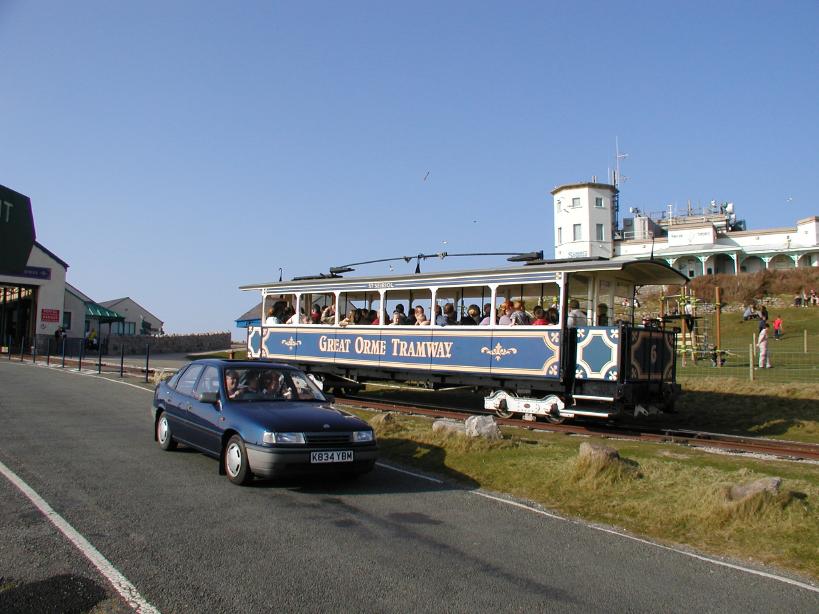

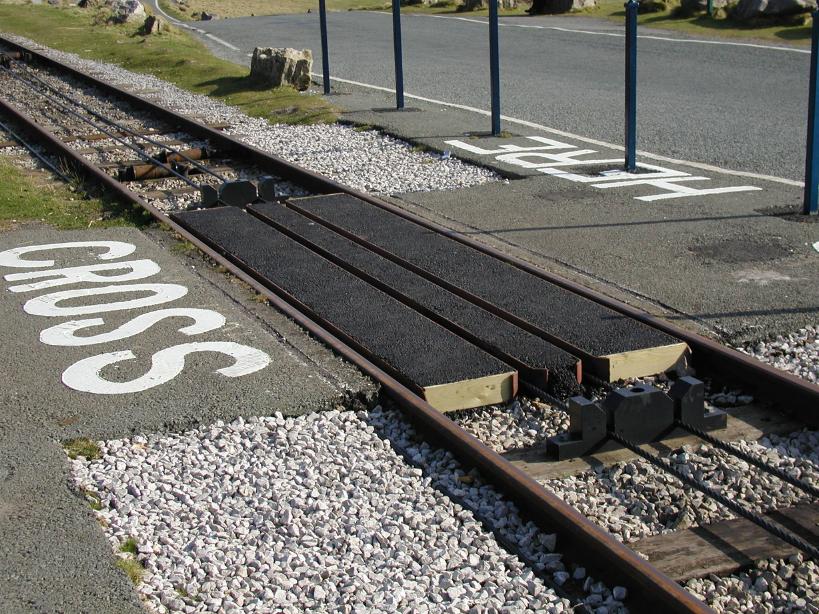

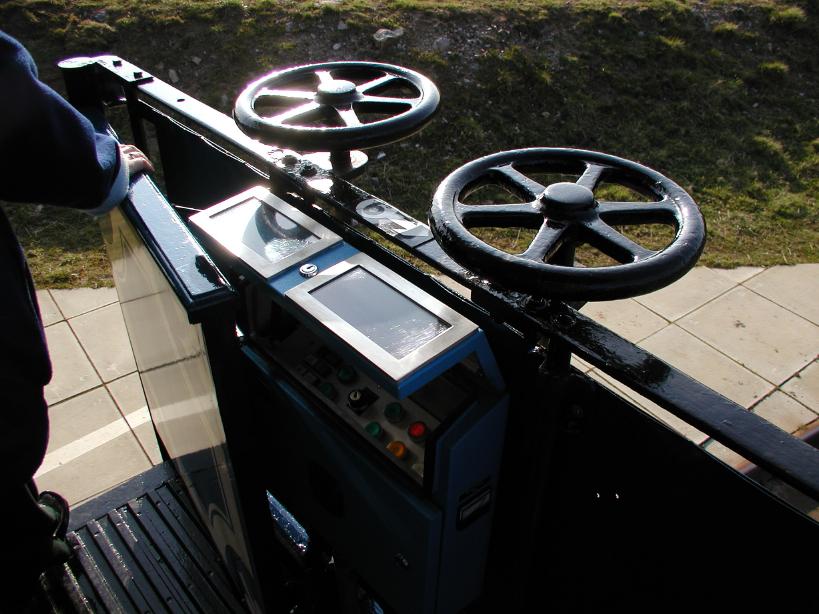

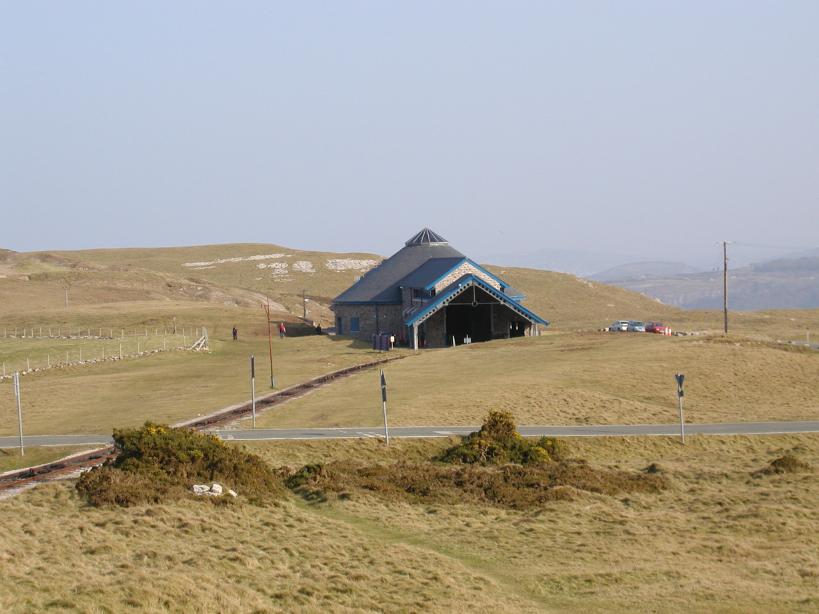

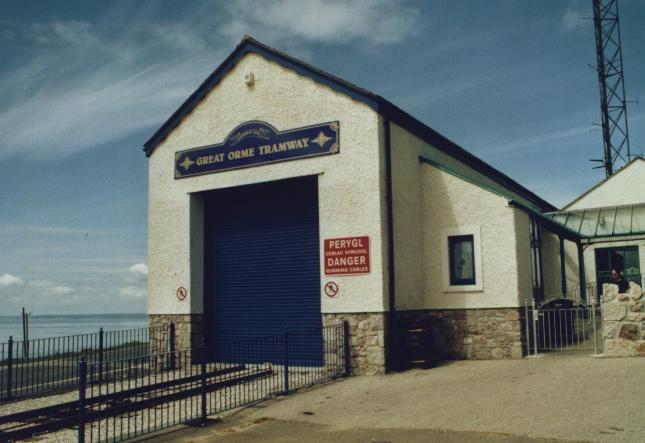

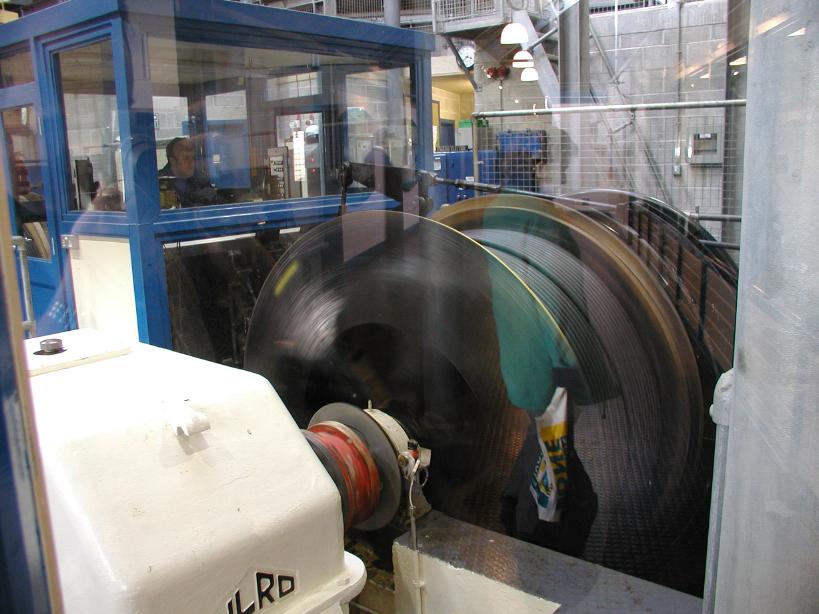

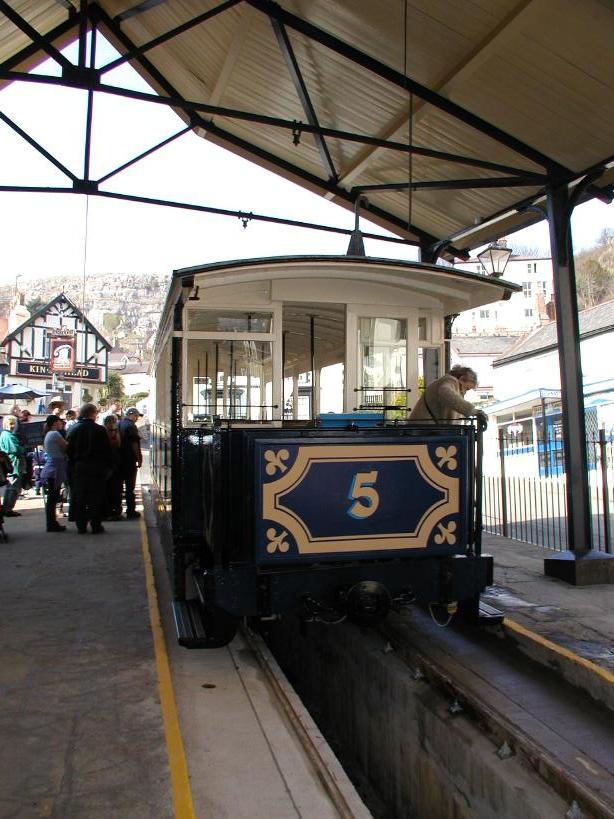

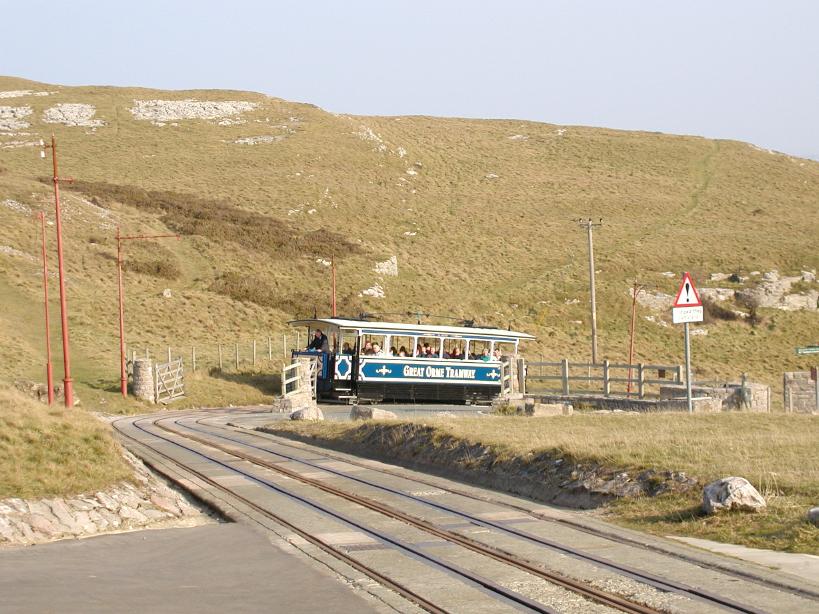

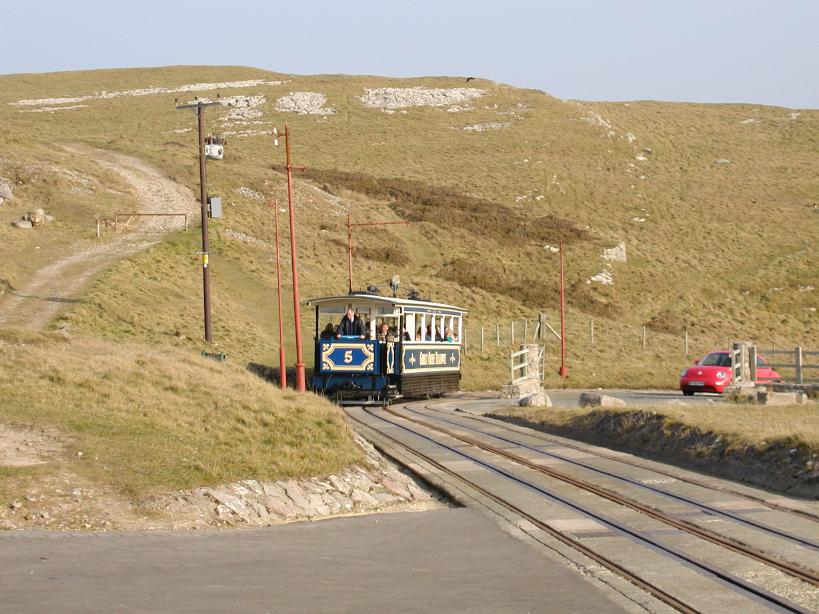

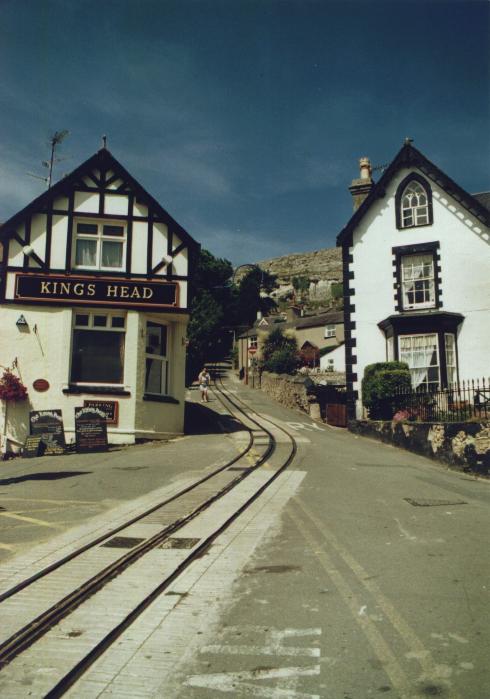

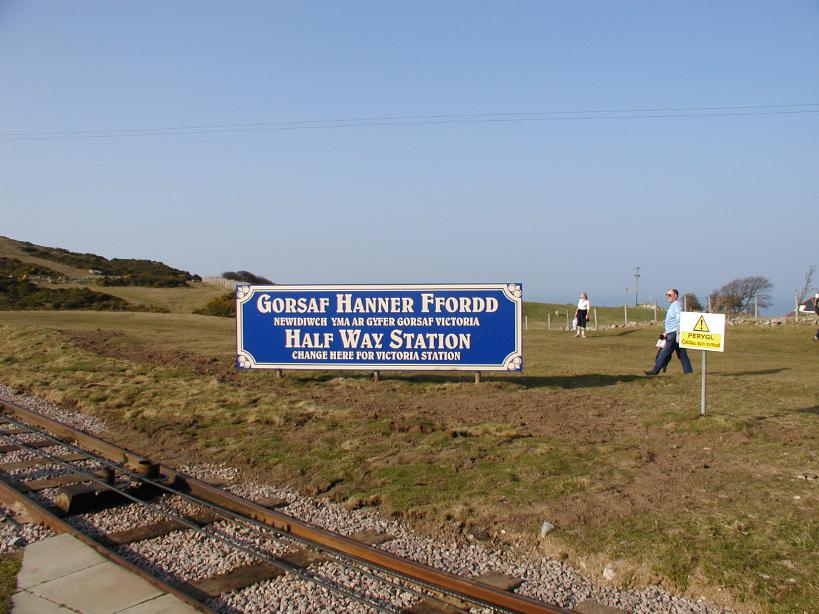

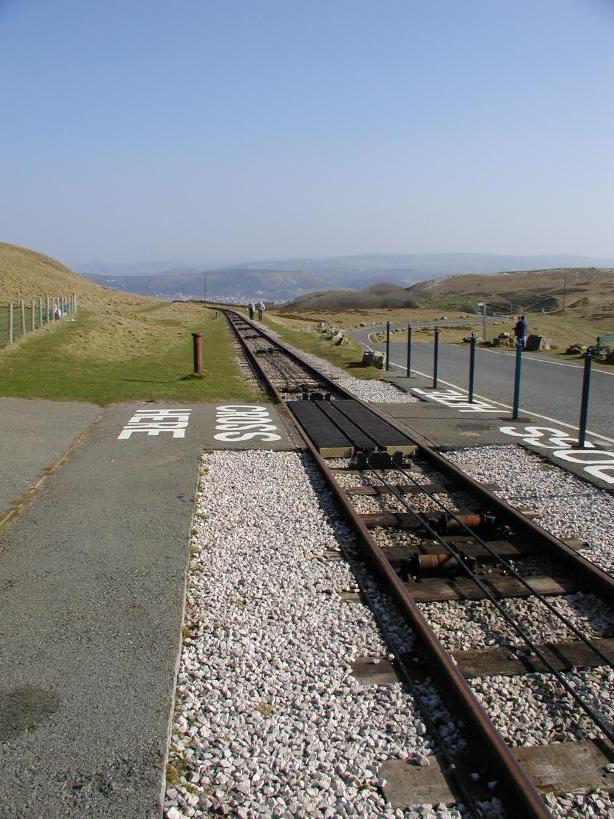

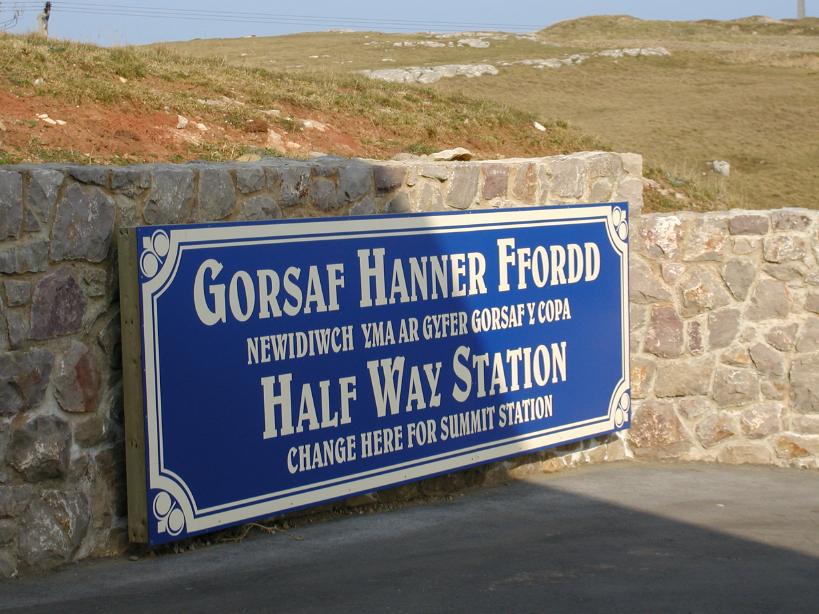

Carriage Lower Station Lower Station The Line Upper  Station Upper  Station Upper  Station The Line The Line The Line Upper  Station Upper Line Upper Line Upper Line Upper Line Upper Line Upper Line Upper Line Upper Line Upper Line Upper Line Upper Line Upper Line Middle Station Tram Controls Middle Station Winding House (Middle Station) Winding House (Middle Station) Lower Line Lower Line Winding House (Middle Station) Winding House (Middle Station) Winding House (Middle Station) Middle Station Lower Line Lower Line Tram Tram Middle Station Lower Line Lower Line Tram Tram Lower Station Lower Station Lower Station Lower Station Lower Line Lower Line Lower Line Lower Station

Historic Picture Historic Picture Historic Picture

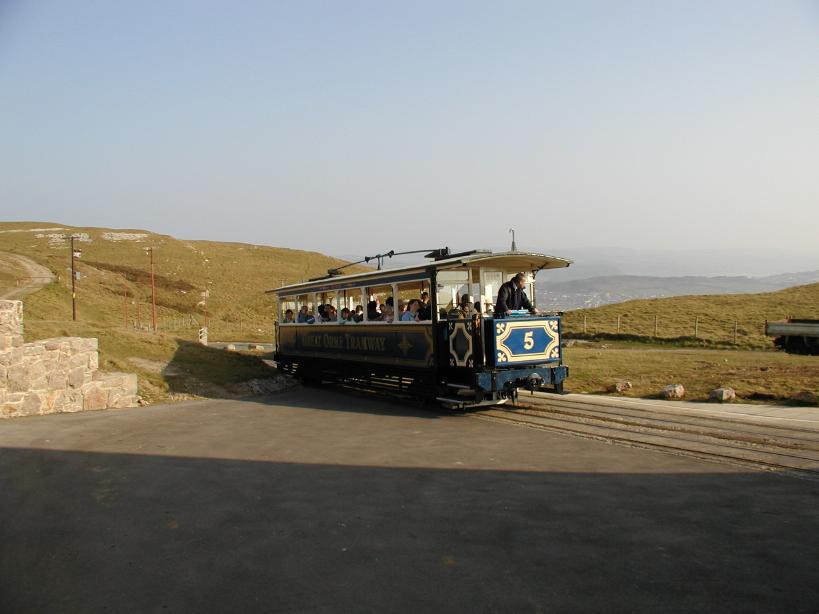

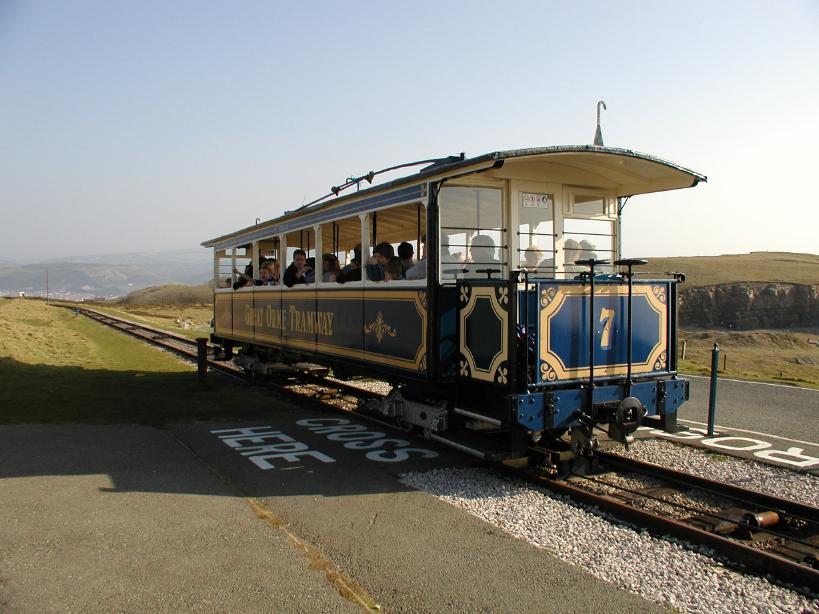

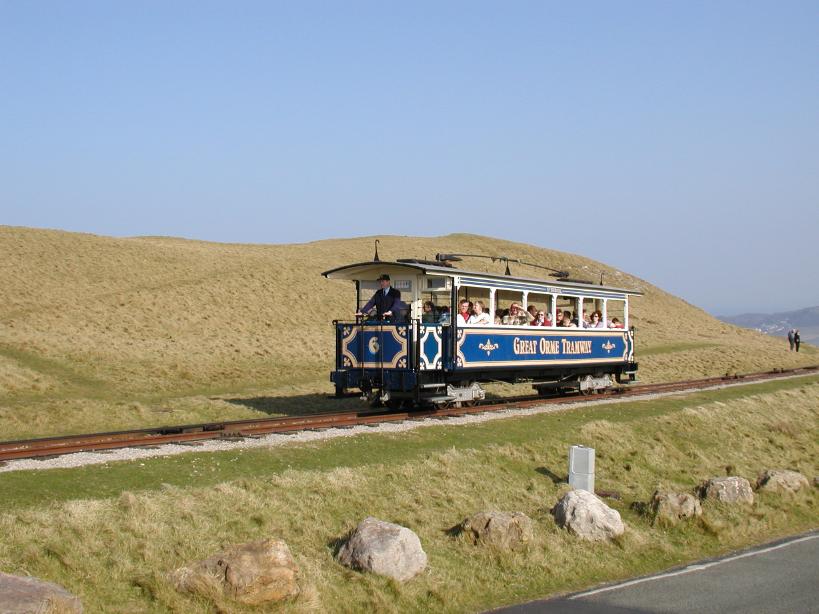

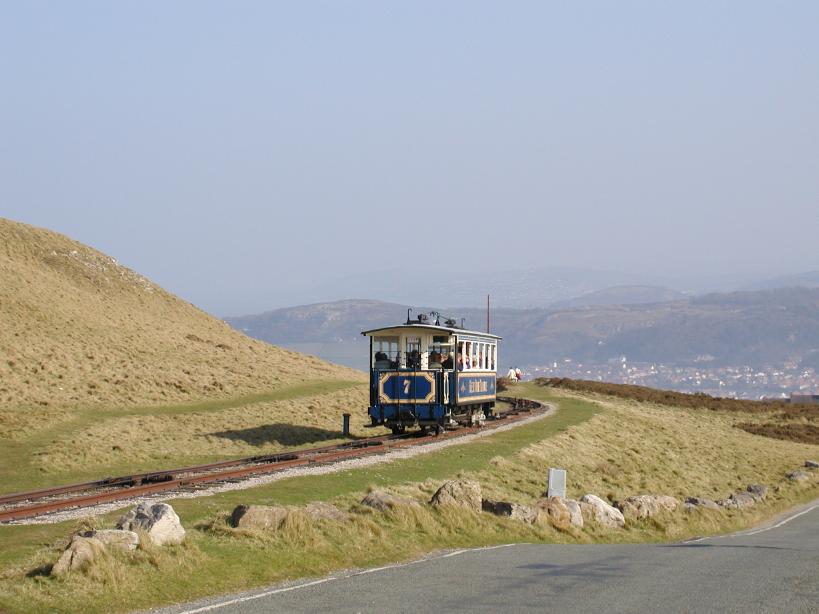

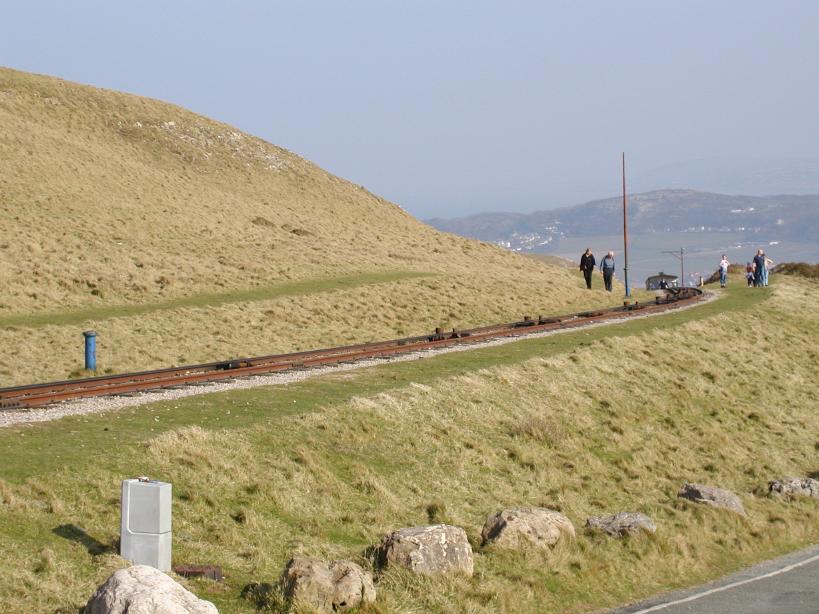

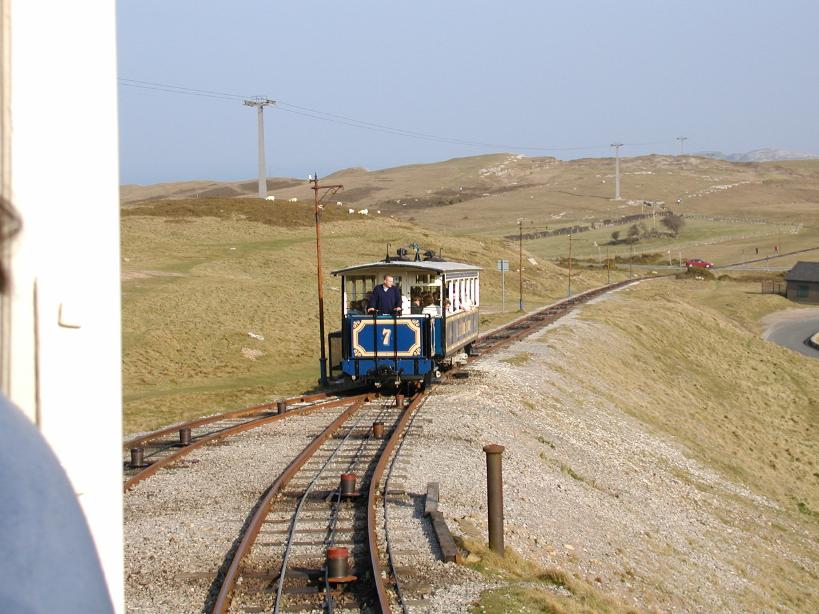

Upper Track

The Stats
Date Opened 8/7/1903Length 756 m
Gradient 1:10.3*Track Gauge 1067 mm
Number of Cars 2Open to Public Yes
Funicular Type Modern FunicularTrack layout Single Track with Passing Loop
Power Source ElectricRailway Status In Use


Lower Track

The Stats
Date Opened 31/7/1902Length 797 m
Gradient 1:3.9*Track Gauge 1067 mm
Number of Cars 2Open to Public Yes
Funicular Type Single cabinSingle cabinTrack layout twin / single track with Passing Loop
Power Source ElectricRailway Status In Use

* - Variable (max gradient reported)
